Key features of our 20 kVA Electrical Upsetting Machines

  • Auto loading and unloading of components
  • Bulb temperature control through Optical pyrometer
  • Anvil Auto indexing, Upsetting force and anvil movement controlled by AC servomotors
  • Measurement of upsetting load through load cell are some of the advanced featuress offerded on this Upsetter

20kVA Single head Upsetter with Auto loading and Unloading

This vertically configured machine is provided with hydraulically operated Anvil and Upsetting units. This single head machine has job clamping vice and steady rest mounted at its front and Auto loading and Unloading system mounted at its sides. It is used for producing flanged components from bar stocks like IC engine valves.

Specifications
  • Max. upsetting Force : 2000kgf
  • Max. dia. of bar upset : 9mm
  • Max. length of bar upset : 250mm
  • Max. upsetting stroke : 150mm
  • Anvil stroke : 50mm

These machines are used for producing IC engine valves or similar components by using round bars

Automotive

kVA Single head upsetter

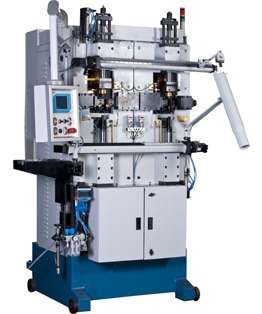

20KVA Twin Head Hydraulic Upsetter

This double headed Upsetter is provided with hydraulically operated Anvil and Upsetting units. Job clamping vice and steady rest units are mounted at its front and Auto loading and Unloading system mounted at its sides. It is used for producing flanged components from bar stocks like IC engine valves. The machine works in continuous auto cycle. The machine has a PLC based control system.

Specifications
  • Max. upsetting Force : 2000kgf
  • Max. dia. of bar upset : 9mm
  • Max. length of bar upset : 250mm
  • Max. upsetting stroke : 150mm
  • Anvil stroke : 50mm

These machines are used for producing IC engine valves or similar components by using round bars

Automotive

20kVA Twin Head Servo Electrical Up setters with Auto Loading and Anvil Indexing

This Upsetting machine has the following advantages.

  • Constant speed of Upsetting
  • Automatic anvil indexing
  • IGBT control for heating current: Three phase power input ensuring equal current on all three phases. Sinusoidal power input to transformer eliminating line harmonics.
  • Optical pyrometer to measure temperature, avoiding over heating of bulb and thus eliminating cracks at the root of the bulb.
  • All settings except jaw change and anvil change can be done offline
  • All upsetting functions are parameterized
Specifications
  • Min - Max. Dia. of Bar : 4.4 - 8 mm
  • Min- Max. Length of Bar : 90 - 300mm
  • Upset Length : 80mm to 200mm
  • Upsetting stroke – max : 200 mm
  • Anvil stroke – max. : 50 mm

These machines are used for producing IC engine valves or similar components by using round bars.

Automotive

kvaTwinhead servo electrical upsetter with auto loading and anvil indexing
