Key Features of our Hub Rotation D urability Test Rig

This test rig is computerized standalone system to perform hub rotational durability test operations with block programming and controlled parameters. All control hardware and software are based on National instruments products. On line plot and display with results offer flexibility in data analysis. Features include - Programmable speed and force, and temperature monitoring

  • Programmable speeds and forces
  • Temperature monitoring

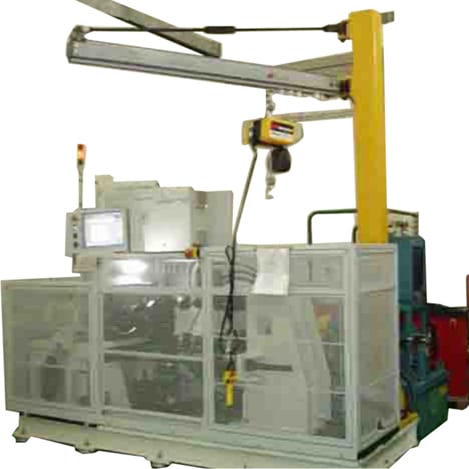

Hub Rotation Durability Test Rig

Specifications
  • Hub Rotation: 200 to 1500RPM
  • Loading Actuator Height: 25KN - 2Nos.
  • Loading Actuator Vertical: 50KN -1No.
  • emp.: 0-100°C
  • Radial Longitudinal Axis: 0-50KN

To simulate actual road condition on the Hub and Knuckle

Automotive

test rig hub rotation
