About

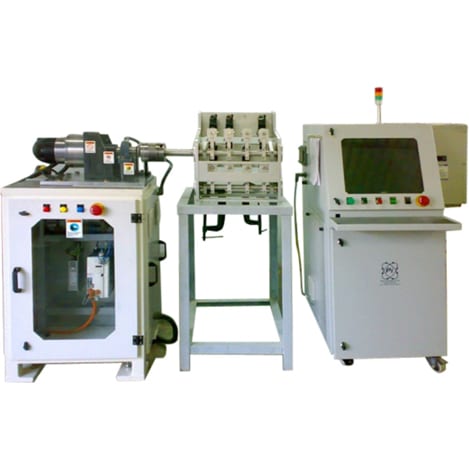

This test rig facilitates endurance test requirements on all accelerator pedal modules. APM pedals can be tested for voltage output or contact resistance measurements. Facility to set the 0% pedal position (L1) and 100% pedal position (MS) is available. A geared servo motor generates the required torque needed to press 8 pedals simultaneously. An absolute encoder (16) bit provides absolute (referenced) position for controlling the pedal position. Off line / online analysis and reports are available. Features include facility of Synchronicity test, Stability test, contact resistance test, SRC test, kick down error test and snap test.

Features
  • Synchronisity test, stability test, contact resistance test, SRC
  • test, kick down error test & snap tests are conducted
  • Up to 8 Pedals can be tested simultaneously
Specifications
  • No. of Stations: 8
  • Ratation Angle Max: 0-85Deg
  • Speed Max: 3Hz @ 25Deg
  • Speed Max: 2Hz @ 40Deg
  • Speed Max: 1Hz @ 80Deg
  • Angle Sensor: Relative: 0.1Deg accuracy
Applications

APM pedals can be tested for voltage output or contact resistance measurements

Industry Sectors
Automotive
