Key Features of our Ball Turning and Burnishing Machine

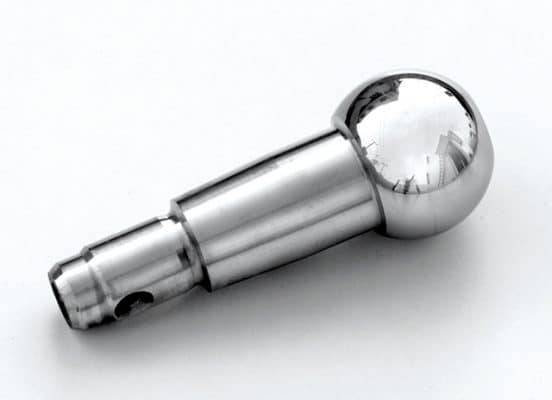

Ball Turning and Burnishing Machine (BTBM) is used for turning and burnishing of ball head used in automobile ball joints (steering gears, for e.g). There is an optional CNC slide ( Z-axis) to machine the undercut relief behind the ball head. Sphericity achieved on the ball head is within 4μ and surface finish better than 0.1 μRa which is among the most accurate ones in the industry. Machine can be tooled up for Inner Ball Joint (IBJ), Inner Ball Joint (OBJ) and Suspension Ball Joint (SBJ) Ball pins.

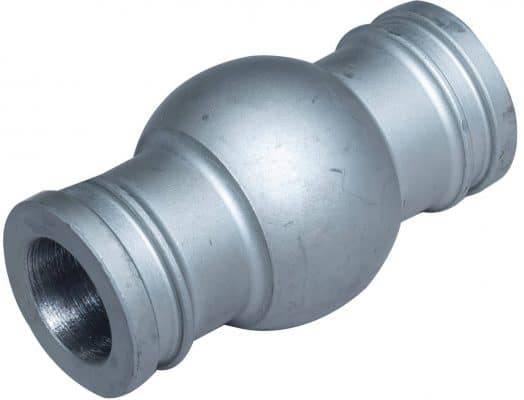

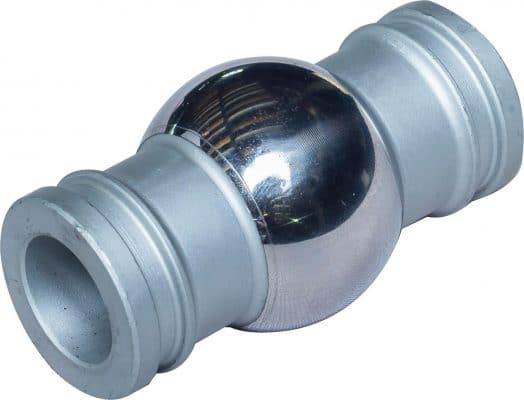

Machines for Ball Valve Industry are also available.

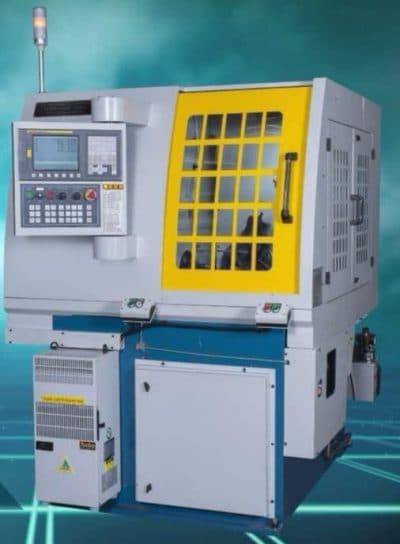

Ball Turning and Burnishing Machine

Specifications
  • Ball diameter Turned / Burnished : 15mm – 100mm
  • X-Axis Stroke (Spindle head slide) : 160mm
  • C-Axis rotation (Rotary Head) : -5 º to 150º clockwise
  • W-Axis (Turning tool slide) adjustment : 12mm max.
  • Surface finish attained : 0.1µ Ra
  • - Sphericity achieved : 4 µm
  • - Depth of cut : upto 2mm

Automotive


CNC Profile Turning and Burnishing Machine with integral spindle

Key Features of our CNC Profile Turning and Burnishing Machine with integral spindle

Any job where the hardness is less than 40HRC and which needs grinding after turning can be economically manufactured by turning–cum–burnishing method. In this machine there is provision for three axis ( Z, X & A) interpolation of tool to machine and burnish any profile.

SPM CNC Profile turning
Specifications
  • Spindle torque : 48Nm
  • Spindle speed : 0 - 4000rpm
  • X-axis stroke : 150mm
  • Z-Axis stroke : 150mm
  • A-Axis rotation (tool) : 360º
  • Max. thrust of burnishing tool : 1000N (spring loaded)
  • Control system : Siemens CNC

Automotive
