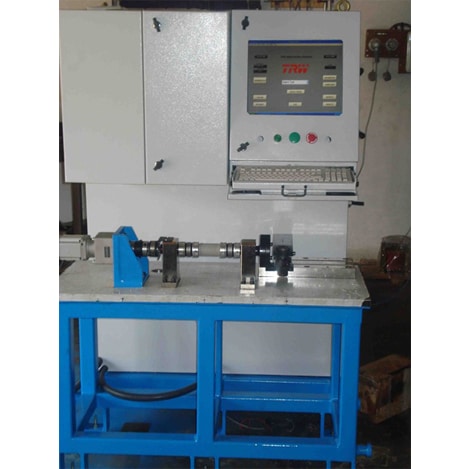

Key Features of our Ball Joint Torque Test Rig Machine

  • Low friction bearing
  • Geared AC servomotor
  • Analog outputs for torque and angle
  • Friction compensation (during calibration)

This test rig facilitates rotational and articulation torque tests on IBJ,OBJ, stabilizer links and connecting rods.

Tests Conducted
Breakaway and rotation torque | Breakaway and articulation torque | Preparation by tipping & tumbling


Specifications
  • Rotation Actuator: 20Nm
  • Torque Sensor: Inline
  • Speed: 0.1 RPM to 10 RPM

This test rig facilitates rotational and articulation torque tests on IBJ, OBJ, stabilizer links and connecting rods

Automotive

ball joint torque
