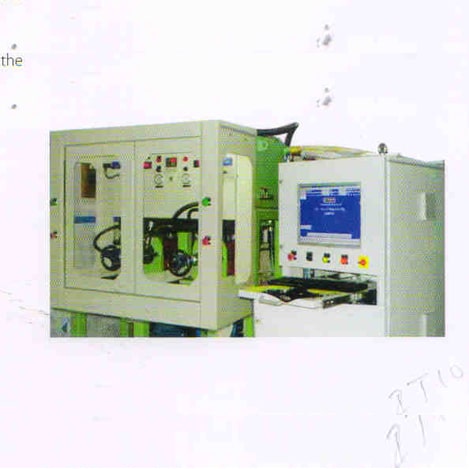

Key Features of our Gear Vane Pump Test Rig

This rig facilitates performance characterization of pumps for the end of line testing
It is designed to facilitate Discharge Vs. Speed characteristics at Set Load | Discharge Vs. Load characteristics at Set Speed | Volumetric Efficiency | Overall Efficiency | Efficiency at Rated Speed & Pressure

  • Automatic selection of the flow, pressure and speed on selection of the model
  • Security (multiple level) to allow access, based on user levels
  • Configuration of sensors and online calibration of sensors

Specifications
  • Drive Motor Max Speed: 500-800 RPM
  • Pump Supply Max Pressure: Max 200 Bar
  • Pump Supply Oil Temperature: Ambient to 120deg C
  • Shaft Load (Belt Load): Max 200kg
  • Hot Chamber Temp. Control: Room Temp. to 100deg C (Optional)
  • Drive Torque: Max 25Nm
  • Pump Supply Max Flow: Max 25 LPM
  • Pulley Ratio: 1:3.1
  • Test Configuration Possible: Diret Drive - Pulley Gear Mesh Drive

This rig facilitates performance characterization of pumps for the end of line testing
