Key Features of our 50 kN-5Axis Ball Joint Endurance Test Rig

This 5- Axis Ball Joint Test Rig is designed to facilitate the following:

1.To conduct the following tests on the Ball Joint

  •  Endurance Tests (With or without Environmental Chamber, With or without Mud Water spray)
  •  Buckling Load Test
  •  Elasticity Test
  •  American Highway Test
  • Road Load Data Test (Carlos Format)
  •  Block Program Tests
  •  Alternated Fatigue Test

2.This is provided with state of the art Electronics Hardware and Software (NIPXI Express, Real time Hardware and Labview Software).

Specifications

Facilitate testing of Ball Joints with Stem length range of

  • 100mm to 450mm and Ball Pin Dia. of Max 45 mm.
  • Electrical Spindle Motor ±250 Nm, 100 RPM Max. – Rotation
  • Environmental Chamber -40 deg To +140deg ( Temperature Range)
Automotive

  Privacy Policy

kn

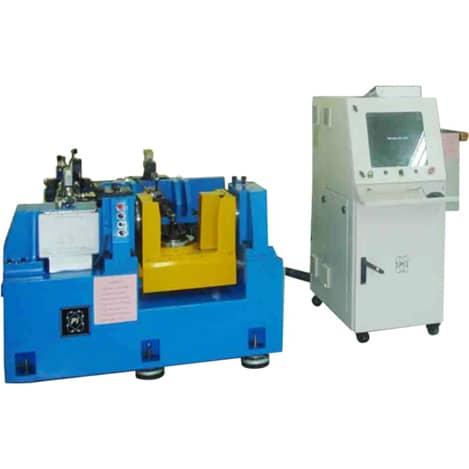

Key Features of our Ball Joint Endurance Test Rig

This endurance and wear test bench serves to simulate the wear on ball joints as per the loads experienced in a vehicle. Required Tilt & Rotation axes are driven by Rotary Actuators.

High frequency, high amplitude loading system is established by linear loading of stem using linear servo cylinder. Online calibration, user friendly test software, standalone operation with independent power-pack etc make the test rig, easy to operate.Axial loading and longitudinal radial loading can be offered as 4th and 5th axes. Environment chamber to generate humidity and temperature are optional.

  • Environment simulation of temperature and humidity
  • Saline water and mud water spraying with Heive can also be offered
  • Elasticity measurement on the test rig is possible without disengaging the ball joint
Specifications
  • Radial Loading Axis: 0KN- 120KN
  • Axial Loading Axis: 0 - 50 KN
  • Radial Longitudinal Axis: 0-50KN
  • Rotation: ± 60°
  • Articulation: ± 35°

This endurance and wear test bench serves to simulate the wear on ball joints as per the loads experienced in a vehicle. Required Tilt & Rotation axes are driven by Rotary Actuators
